01
Architectural Mesh
Expanded metal mesh designed for facades, ceilings and interior applications where aesthetics and light transmission are key.
- Building facades
- Decorative panels
- Interior partitions
Catalog · 02
Expanded Metal
Mesh Products.
Engineered solutions for architectural, industrial and security applications — specified, sourced and delivered across the region.
Introduction
One sheet. Cut, stretched, engineered.
Expanded metal mesh is formed by cutting and stretching a single metal sheet into a uniform diamond pattern. The result is a continuous, weld-free material that combines high strength, durability and aesthetic flexibility across architectural, industrial and security applications.
Product Categories
Four families. One material discipline.
02
Industrial Mesh
Heavy-duty expanded mesh for structural and functional use, including walkways, platforms and safety flooring.
- Industrial walkways
- Platforms & mezzanines
- Factory environments
03
Security Mesh
High-strength mesh engineered for fencing, barriers and anti-climb protection systems for critical infrastructure.
- Perimeter fencing
- Security barriers
- Infrastructure protection
04

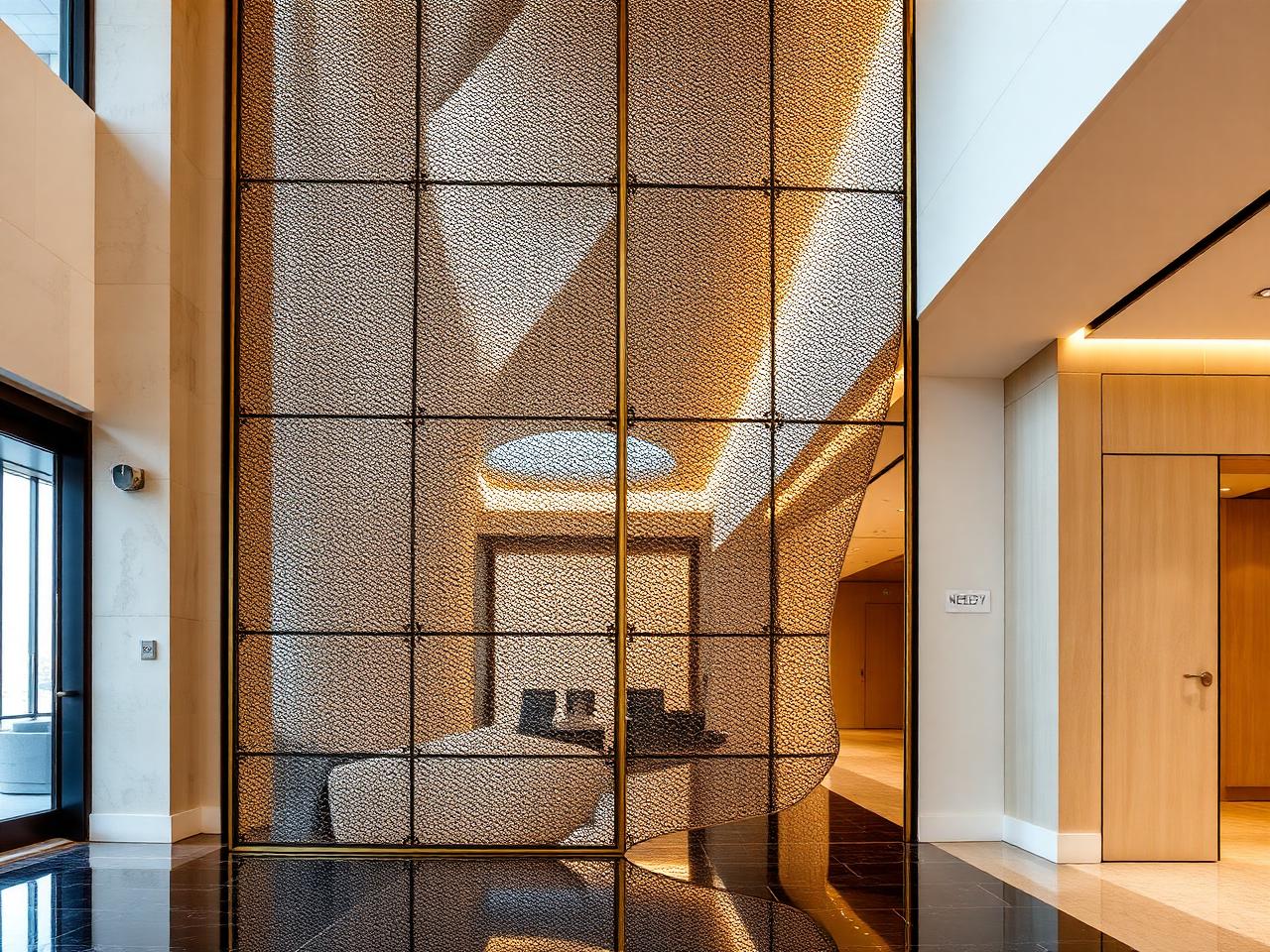

Custom / Special Mesh
Tailor-made expanded mesh including special shapes, bespoke patterns and project-engineered solutions.
- Unique mesh patterns
- Architectural projects
- Bespoke finishes
Applications
From the building envelope to the factory floor.
01
Facades
02
Interior Design
03
Walkways & Platforms
04
Fencing & Security
05

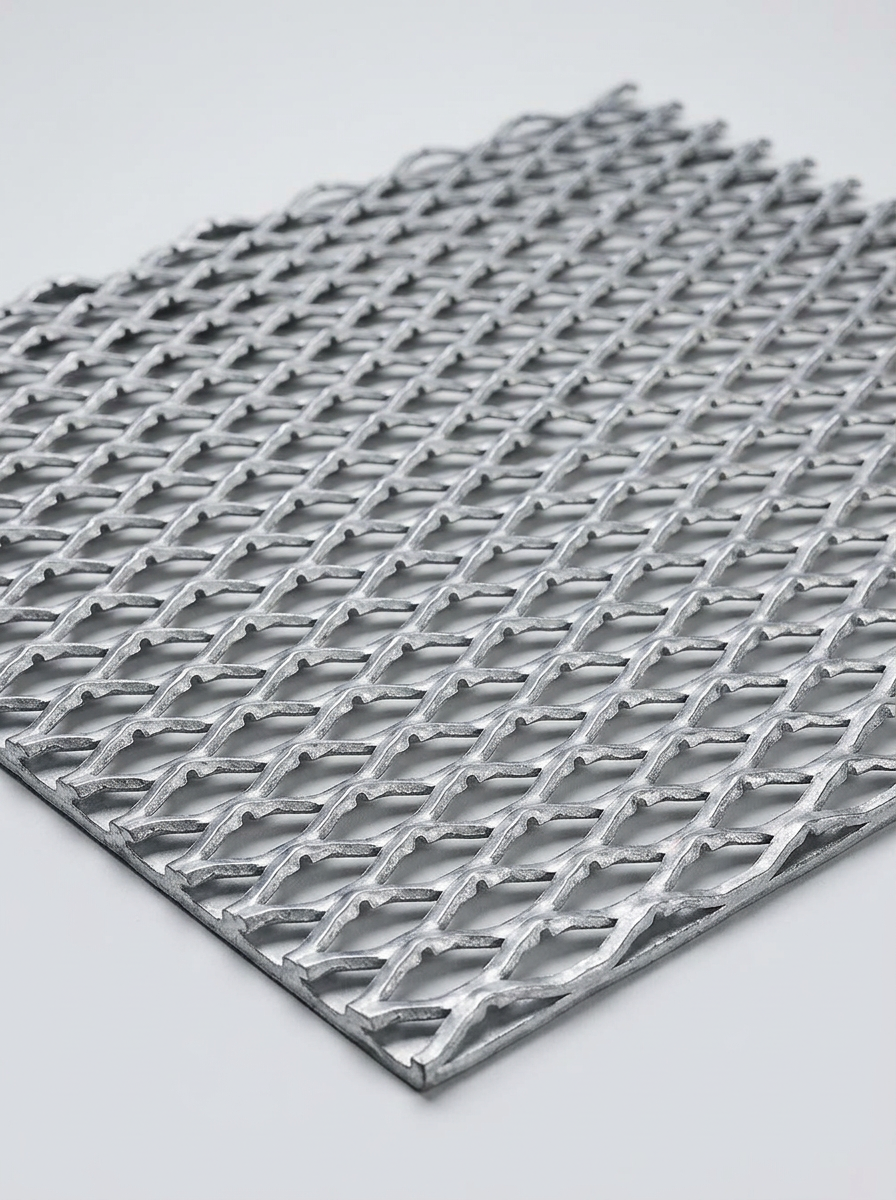

Filtration & Industrial
Key Benefits
Why specify expanded metal.
A single material that delivers structural performance, aesthetic refinement and production efficiency in one continuous sheet.
High strength-to-weight
Maximum structural performance with minimal material mass.
Anti-slip surface
Knife-edge diamond apertures grip in oil, water and ice.
No welding
Single-sheet construction — no weak points, no fatigue lines.
Minimal waste
Cut-and-stretch process produces near-zero offcuts.
Premium aesthetics
Anodised, brushed and powder-coated finishes for signature builds.
Versatile applications
From skyscraper envelopes to plant-room flooring.
Detailed Catalog
Specifications & references.
01 Buildings & Architecture02 Decorative Interior Design03 Walkways & Platforms04 Ceilings05 Fencing06 Safety Grating
01Buildings & Architecture

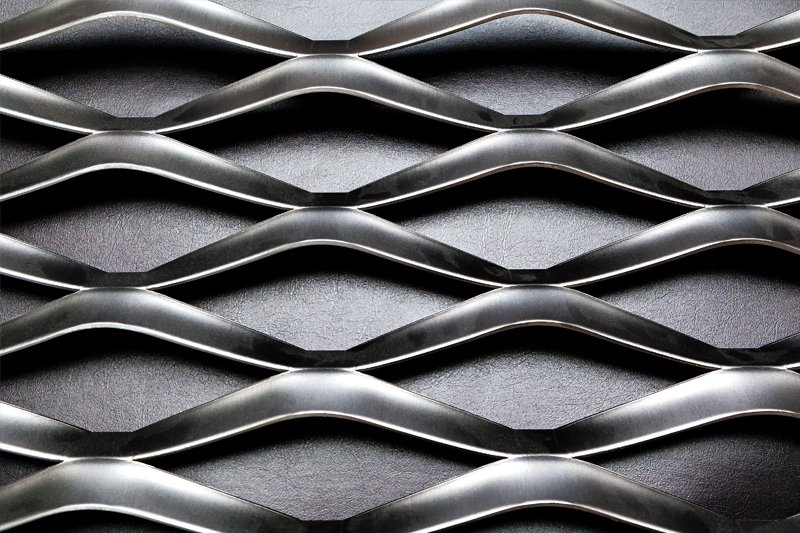

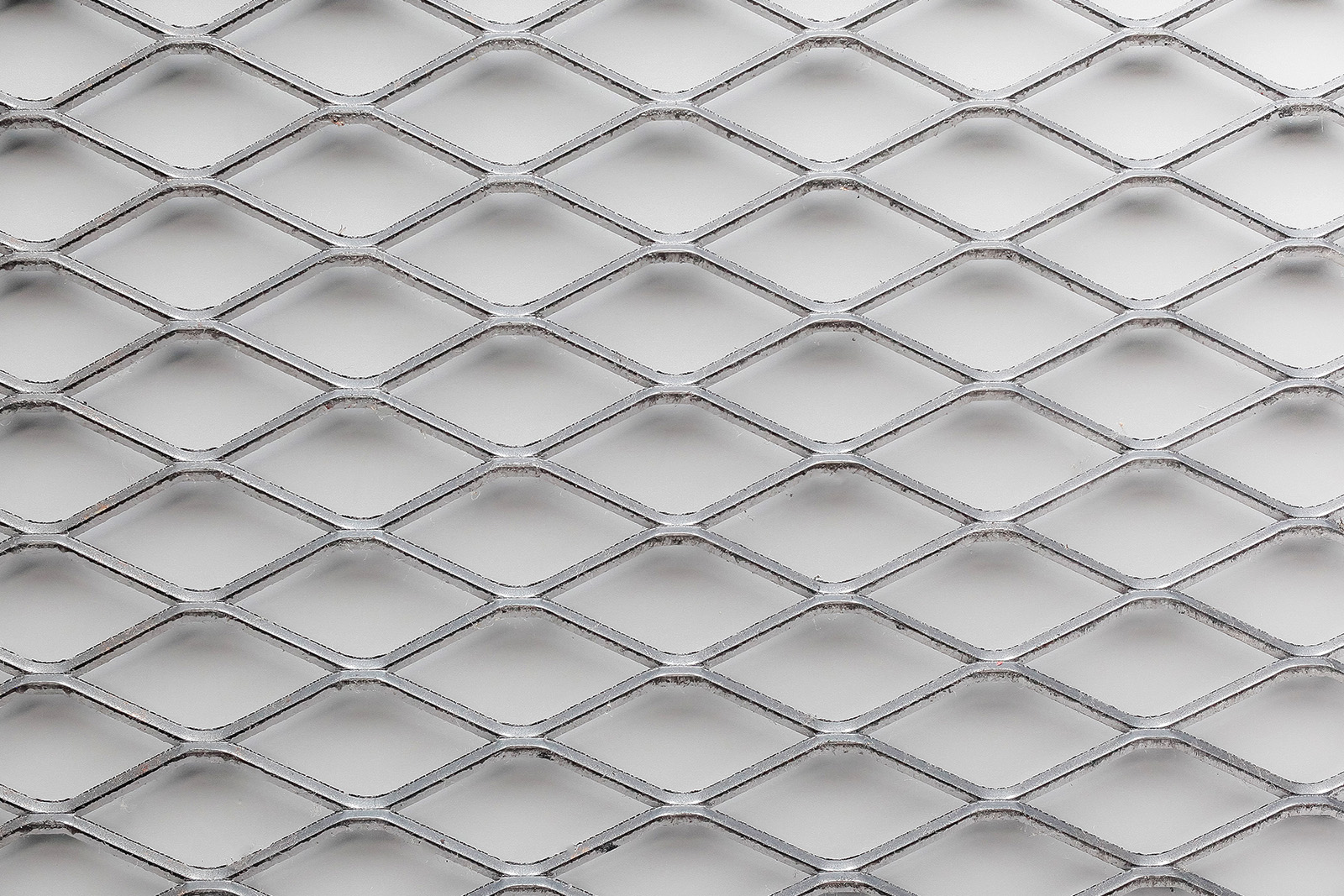

Architectural Facade Mesh
View product pagePremium anodised and powder-coated expanded mesh engineered for ventilated facades, sun-shading screens and signature architectural envelopes. Supplied as project-cut panels with cassette systems for high-rise and landmark builds.
A
Specifications
- Thickness
- 1.5 – 3.0 mm
- Strand Width
- 2.0 – 5.0 mm
- SWD
- 10 – 40 mm
- LWD
- 25 – 100 mm
- Finish
- Anodised / PPC / Brushed
- Material
- Aluminium 1050 / 3003 / Stainless 304
B
Mesh pattern
C
Application references
02Decorative Interior Design

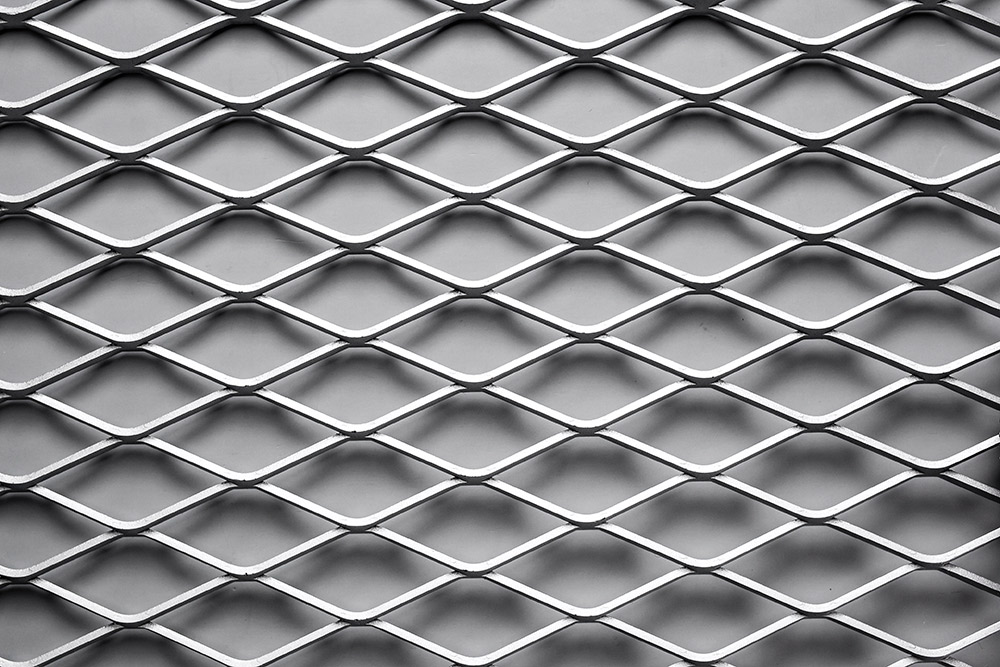

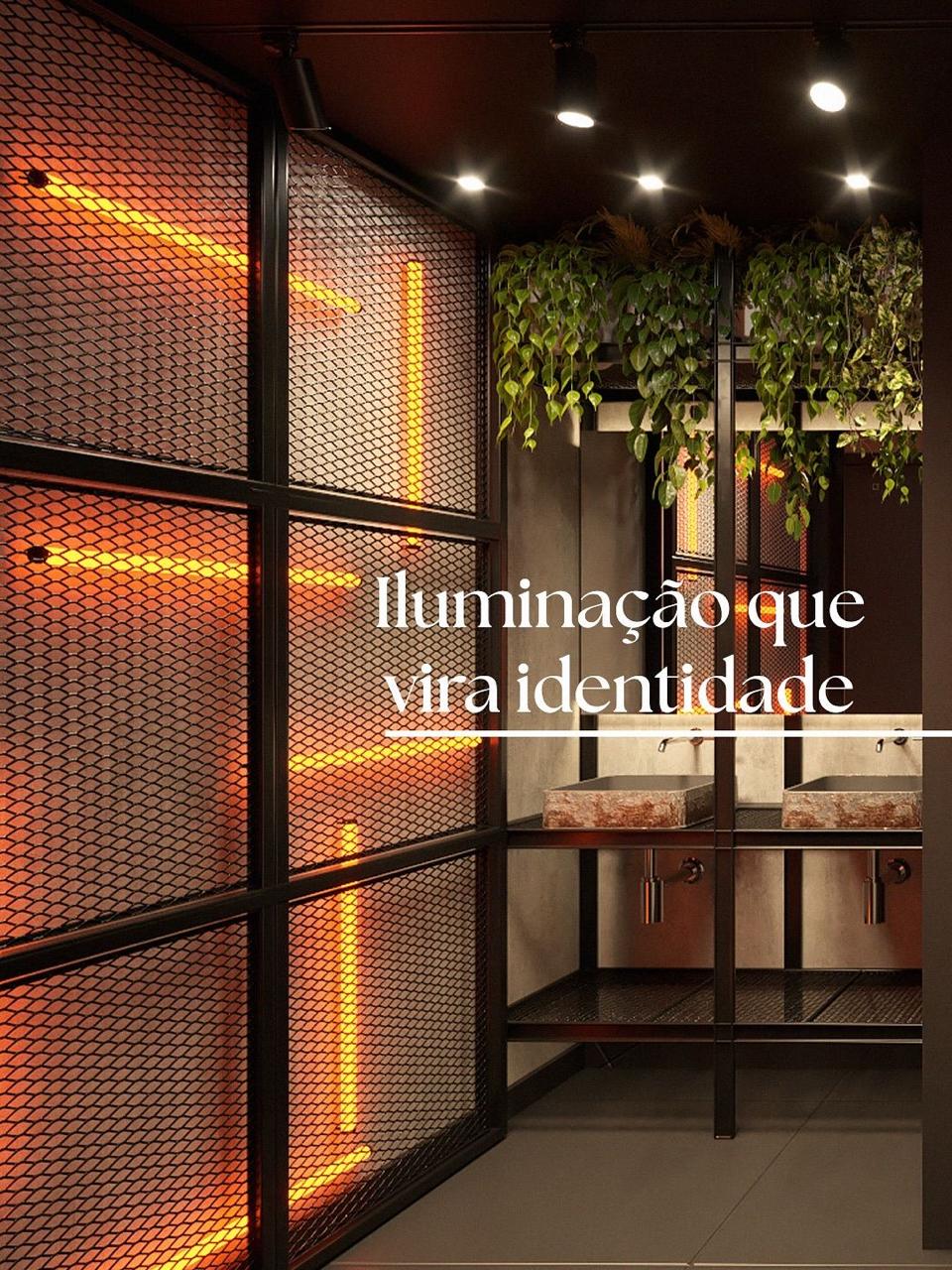

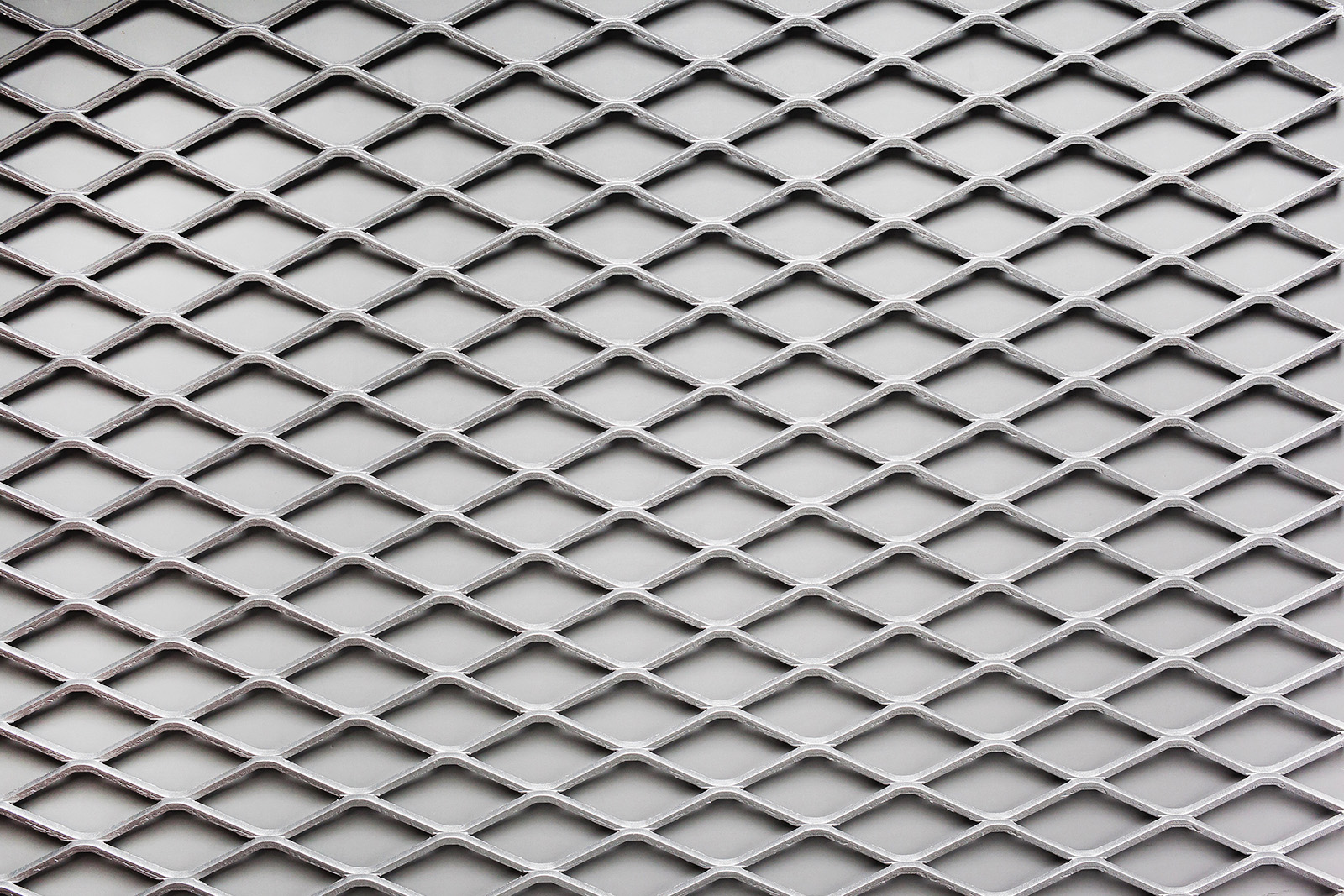

Decorative Interior Mesh

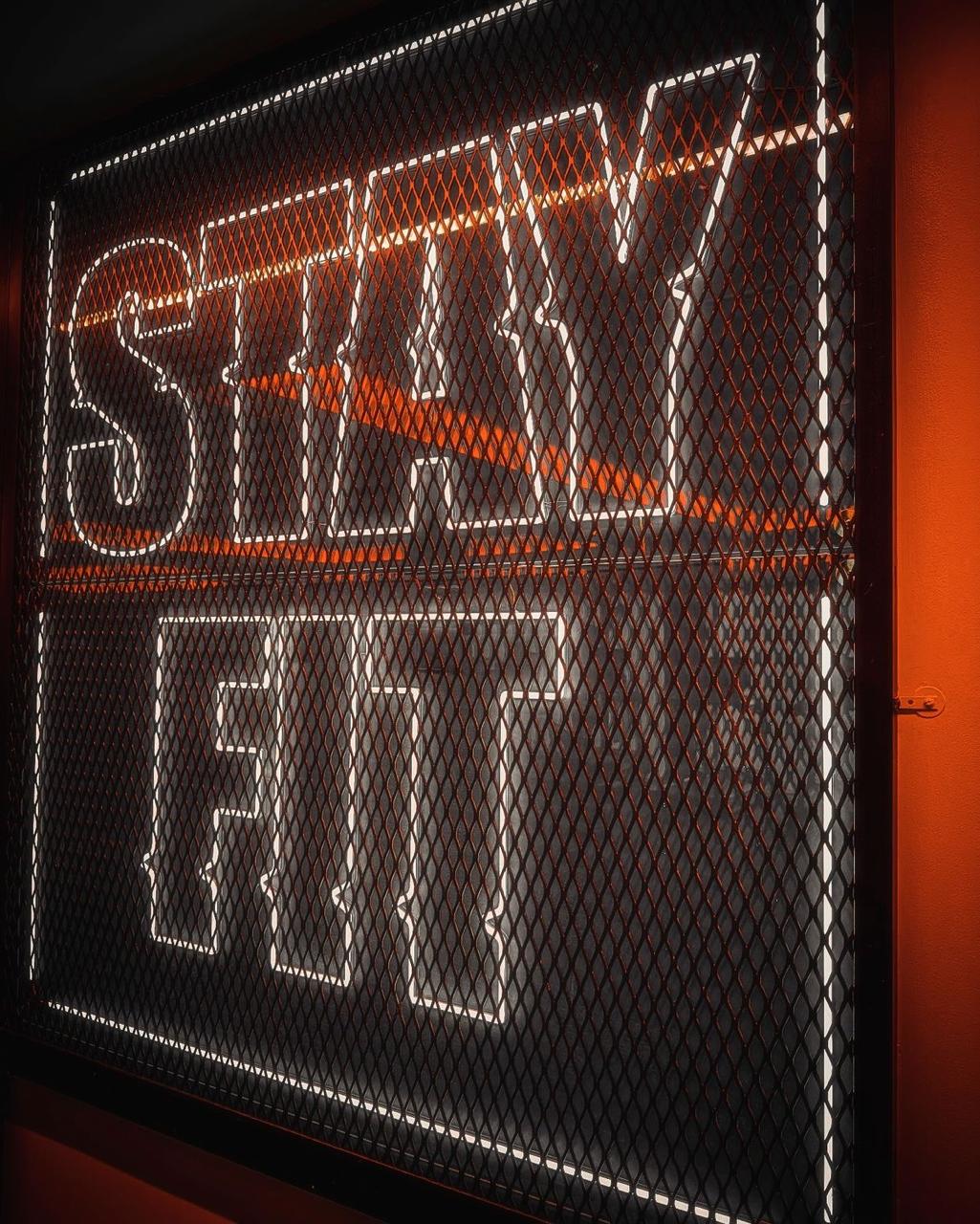

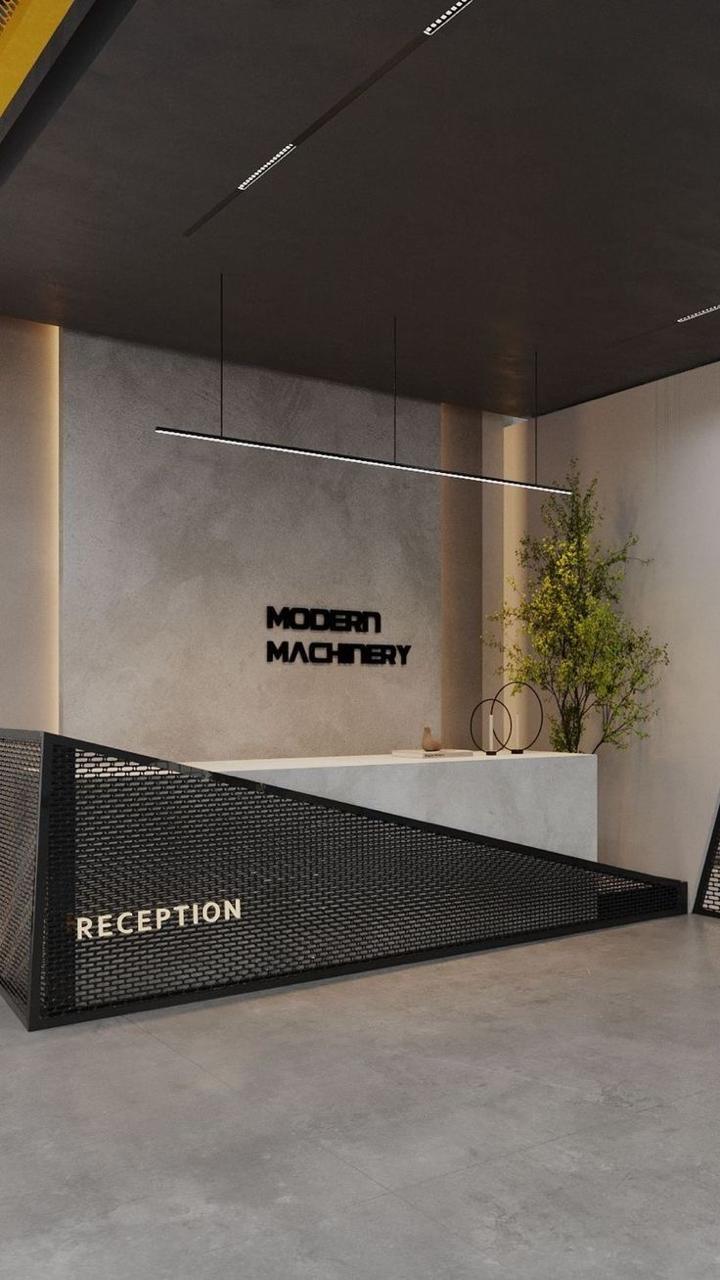

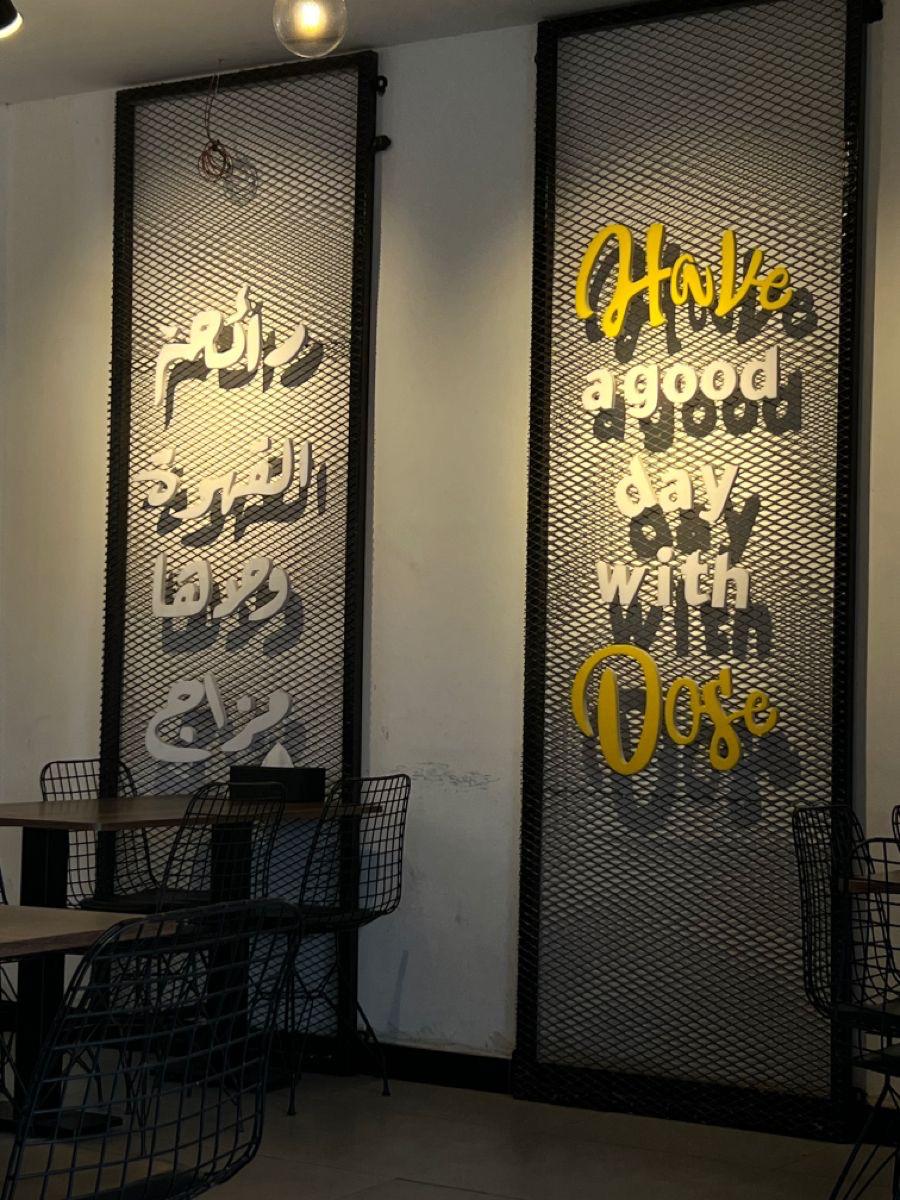

View product pageRefined expanded metal panels for partitions, feature walls, balustrades, reception desks and signature interior elements. Available in anodised, brushed and powder-coated finishes for hotels, retail and corporate fit-outs.
A
Specifications
- Thickness
- 1.0 – 2.5 mm
- Strand Width
- 1.5 – 4.0 mm
- Aperture
- Diamond / Hex / Custom
- Finish
- Anodised / PPC / Brushed Steel
- Material
- Aluminium / Stainless 304 / Brass
B
Mesh pattern
C
Application references
03Walkways & Platforms

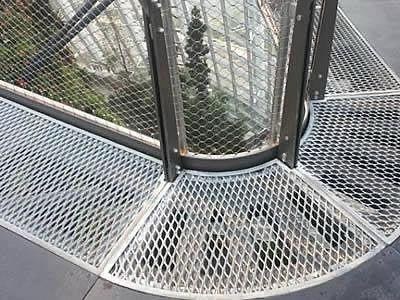

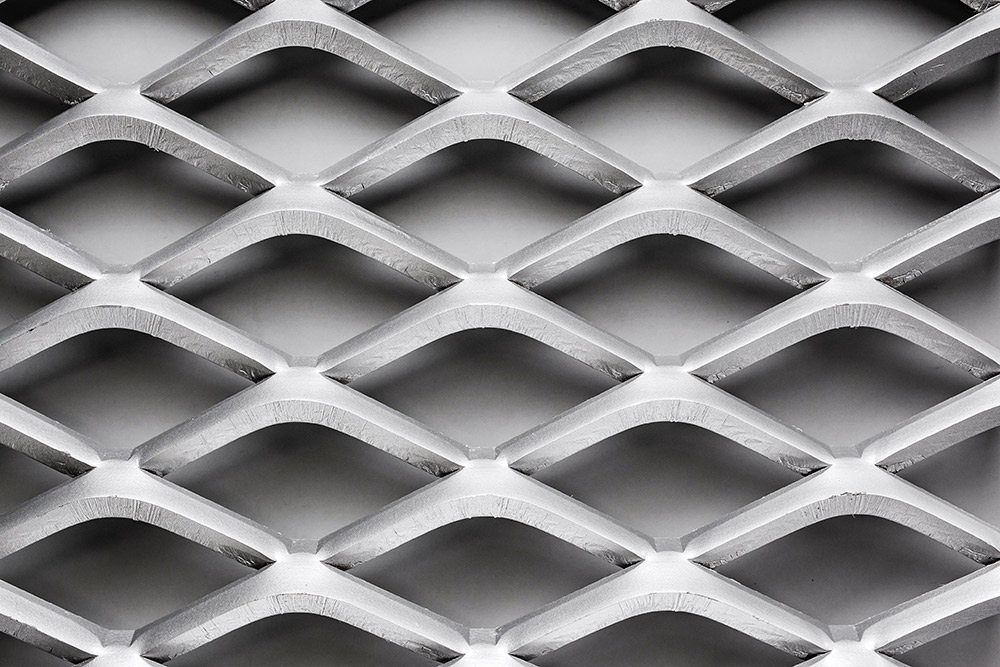

Walkway & Platform Mesh
View product pageHeavy-duty expanded metal flooring for industrial walkways, mezzanines, access platforms and oil & gas decking. Self-cleaning diamond aperture provides excellent grip, drainage and load capacity for foot and trolley traffic.
A
Specifications
- Thickness
- 3.0 – 8.0 mm
- Strand Width
- 5.0 – 10.0 mm
- SWD
- 30 – 60 mm
- LWD
- 75 – 125 mm
- Load Class
- Up to 5 kN/m²
- Finish
- Hot-dip Galvanised / PPC
B
Mesh pattern
C
Application references

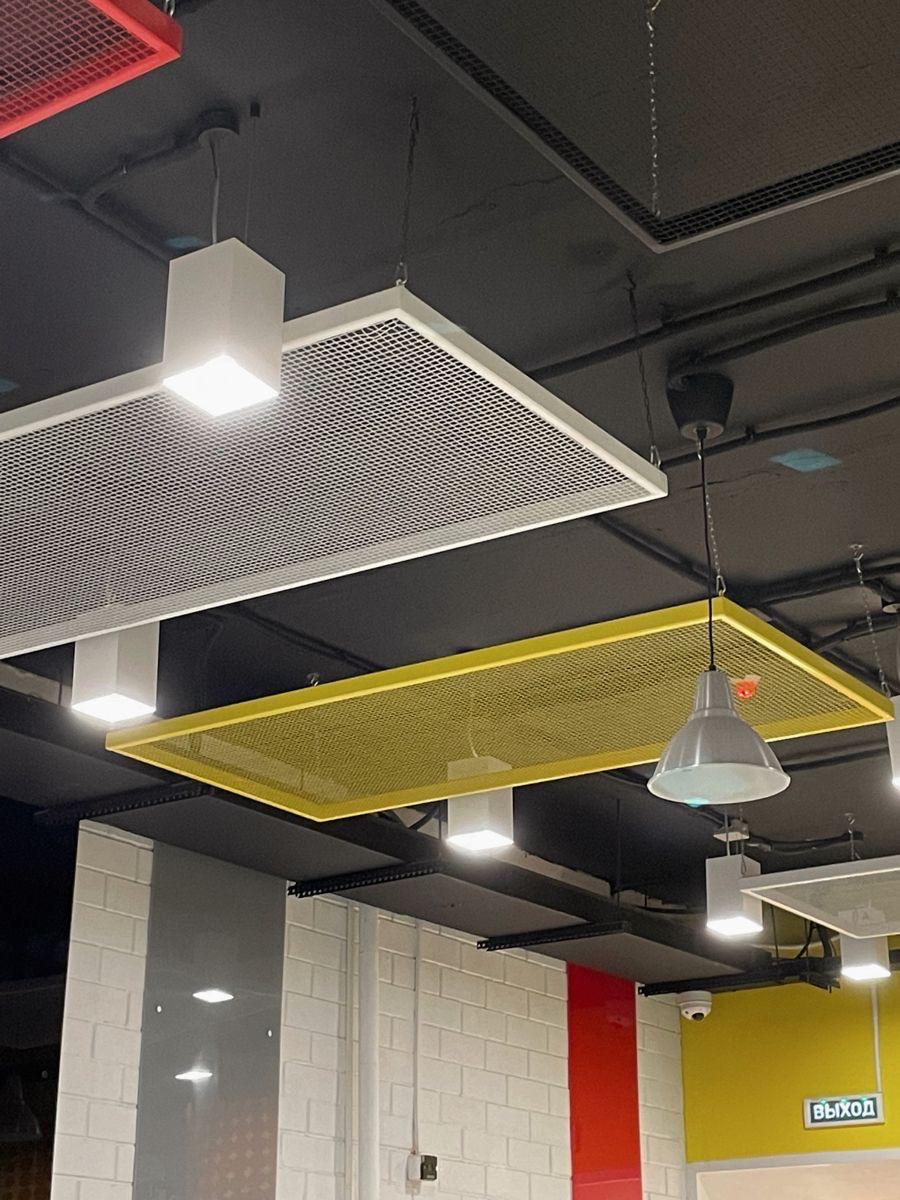

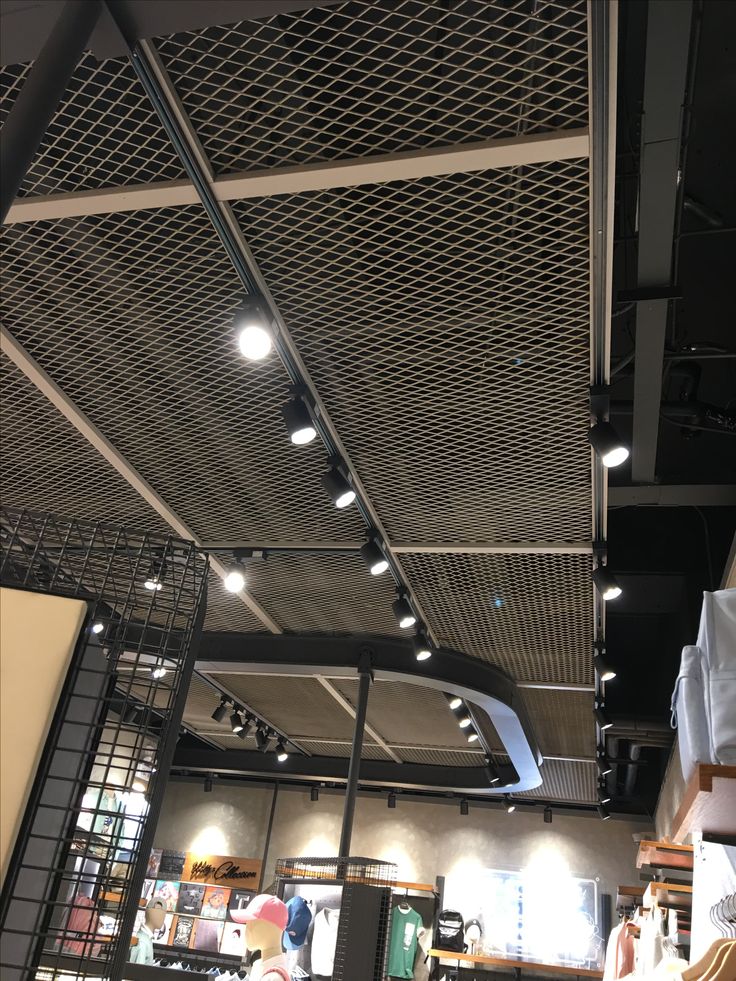

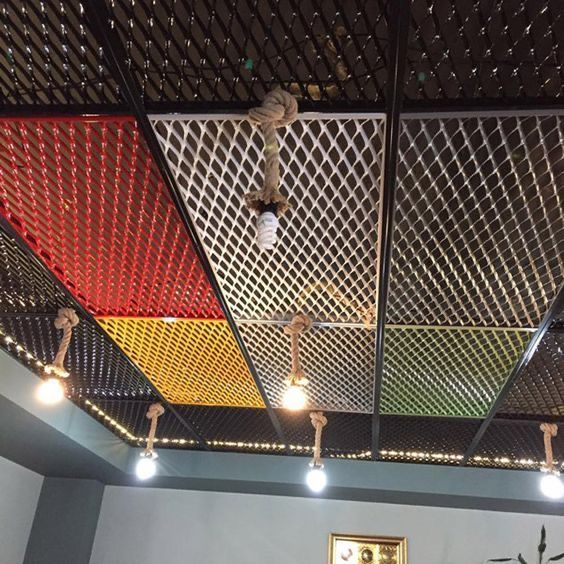

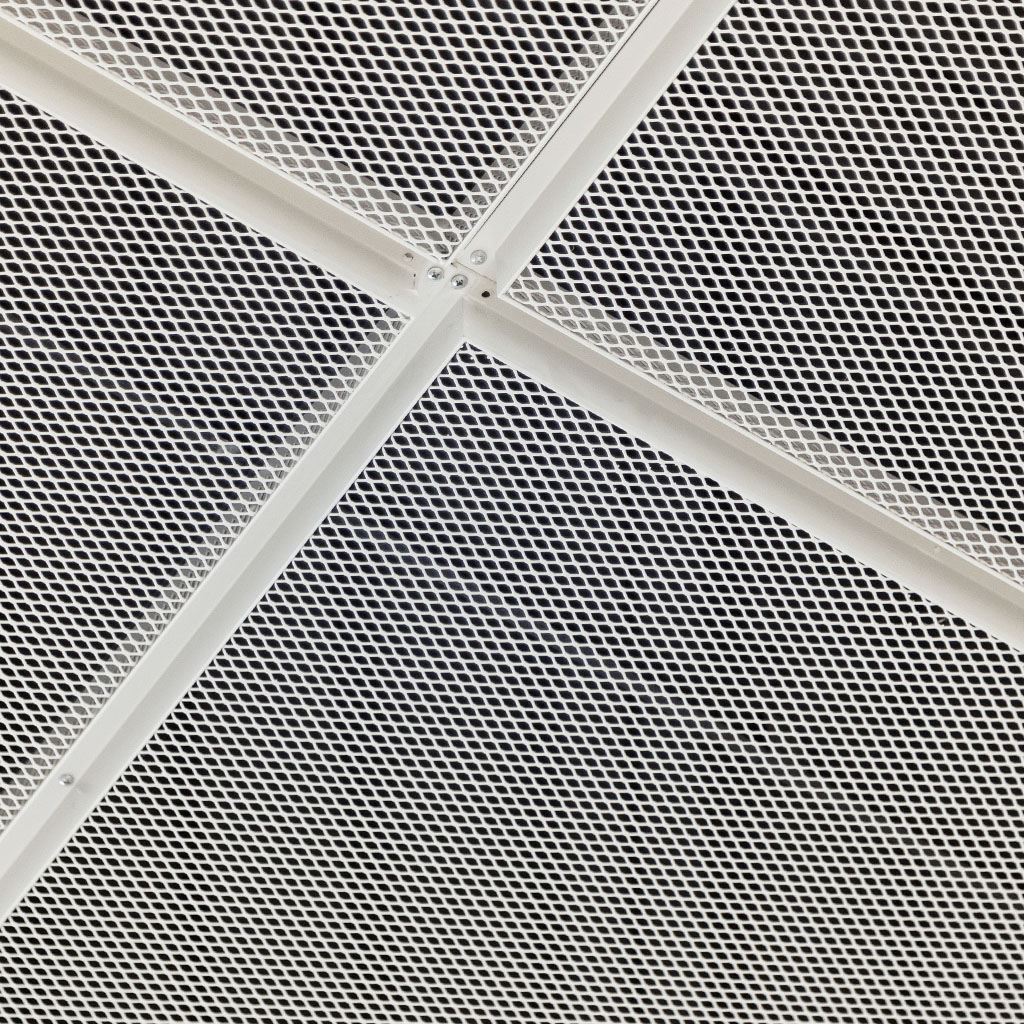

Acoustic and visual ceiling systems in expanded metal — designed for hotels, lobbies, retail, transport hubs and corporate interiors. Custom apertures, cassette formats and finishes to integrate with HVAC, lighting and sprinklers.
A
Specifications
- Thickness
- 0.8 – 2.0 mm
- Pattern
- Fine / Medium / Custom diamond
- Aperture
- 5 – 40 mm
- Open Area
- 40 – 70 %
- Finish
- Anodised / PPC / Brushed
- Material
- Aluminium / Stainless 304
B
Mesh pattern
C
Application references

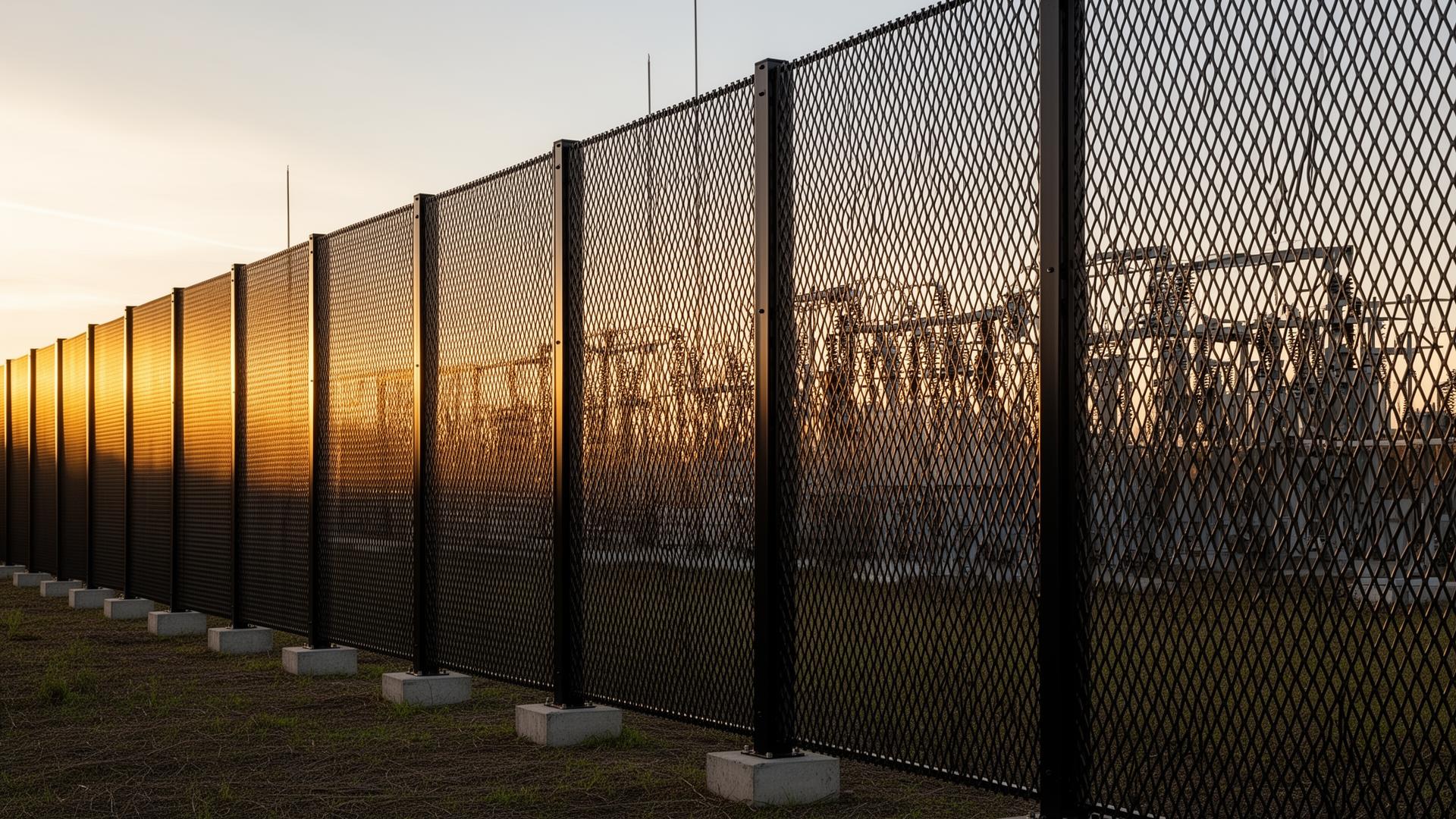

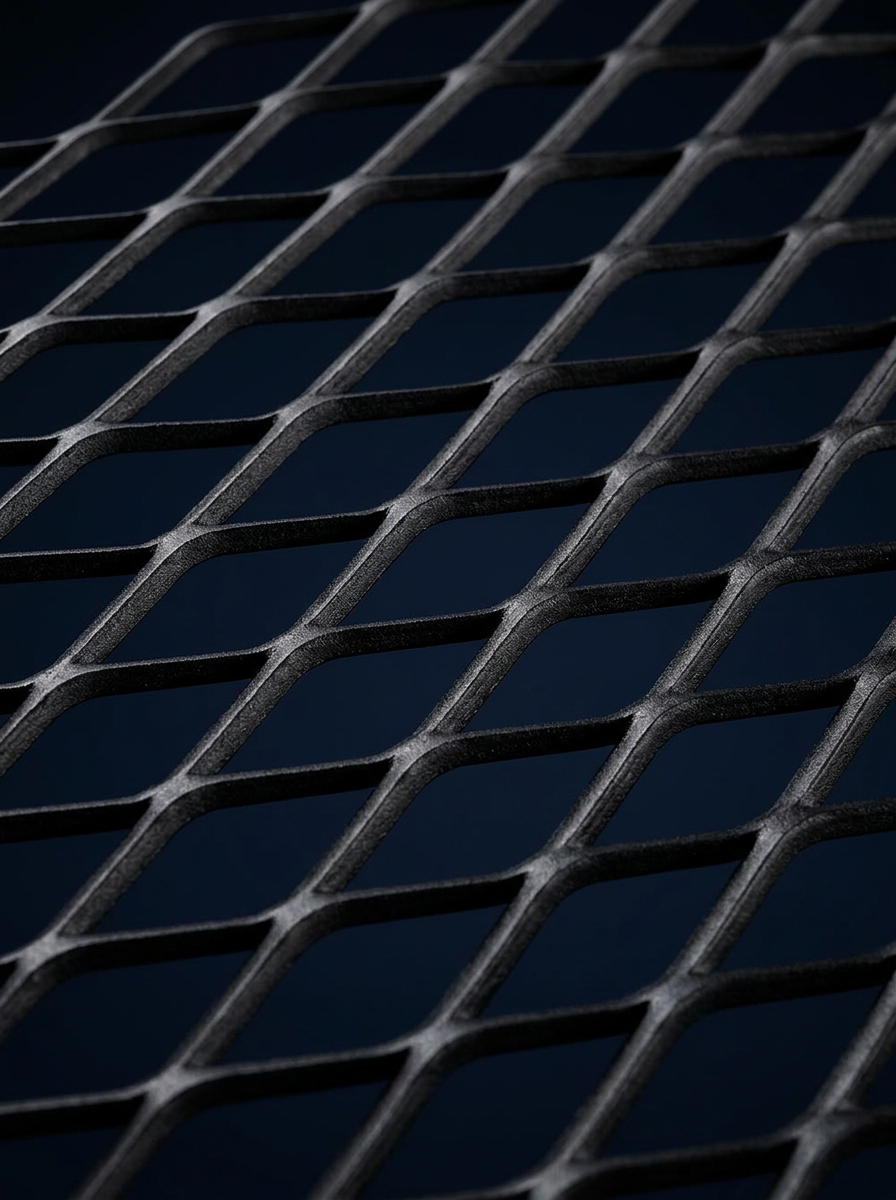

Narrow-aperture expanded metal mesh for perimeter fencing, substations, prisons, data centres and critical infrastructure. Engineered to defeat finger and tool grip, with PPC finishing in standard RAL colours for long service life.
A
Specifications
- Thickness
- 3.0 – 5.0 mm
- Strand Width
- 5.0 – 8.0 mm
- SWD
- 12.7 mm
- LWD
- 76 mm
- Finish
- HD-Galv + PPC RAL 9005 / 6005 / Custom
- Standards
- LPS 1175 SR-rated options
B
Mesh pattern
C
Application references
06Safety Grating

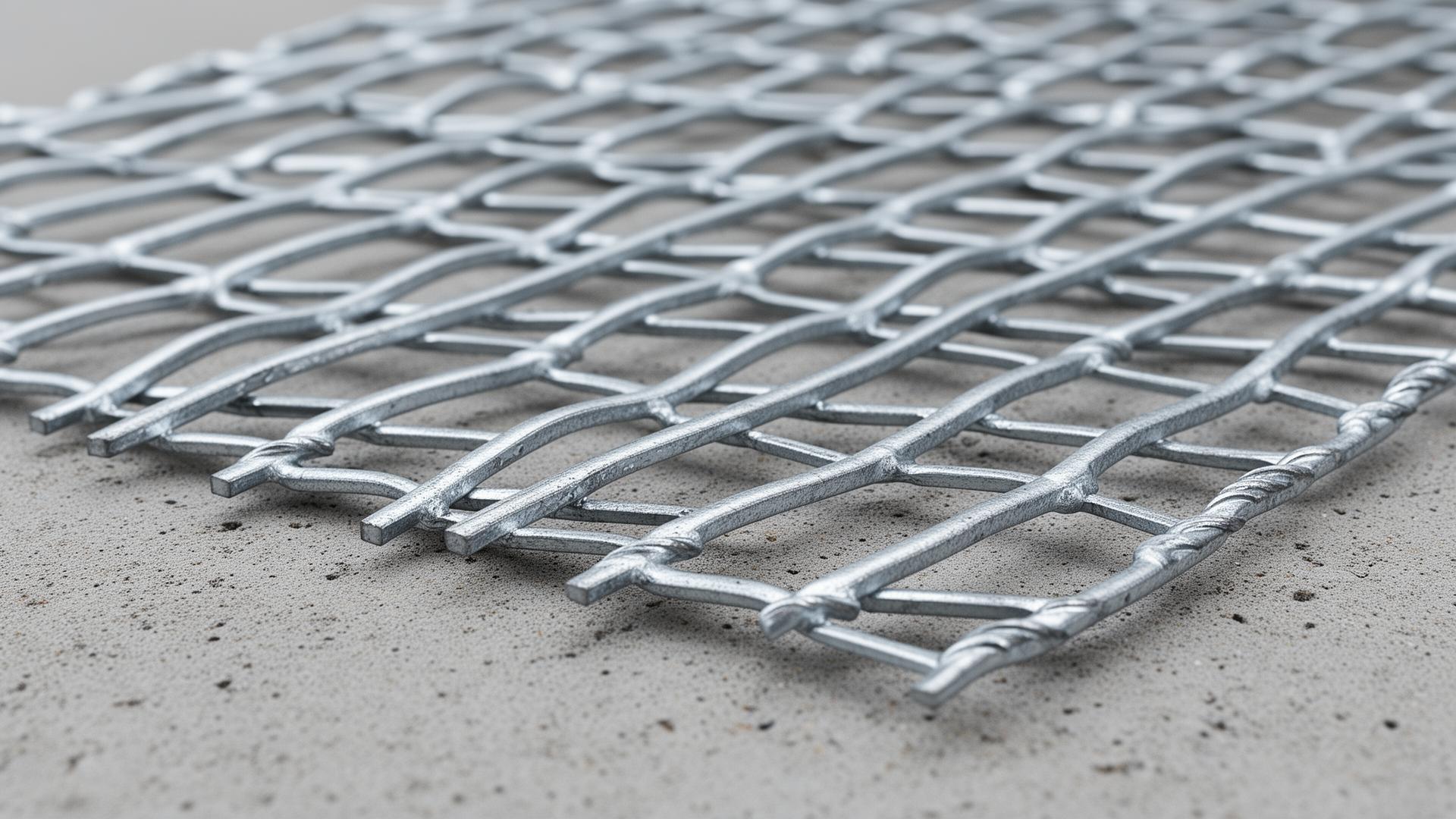

Safety Grating

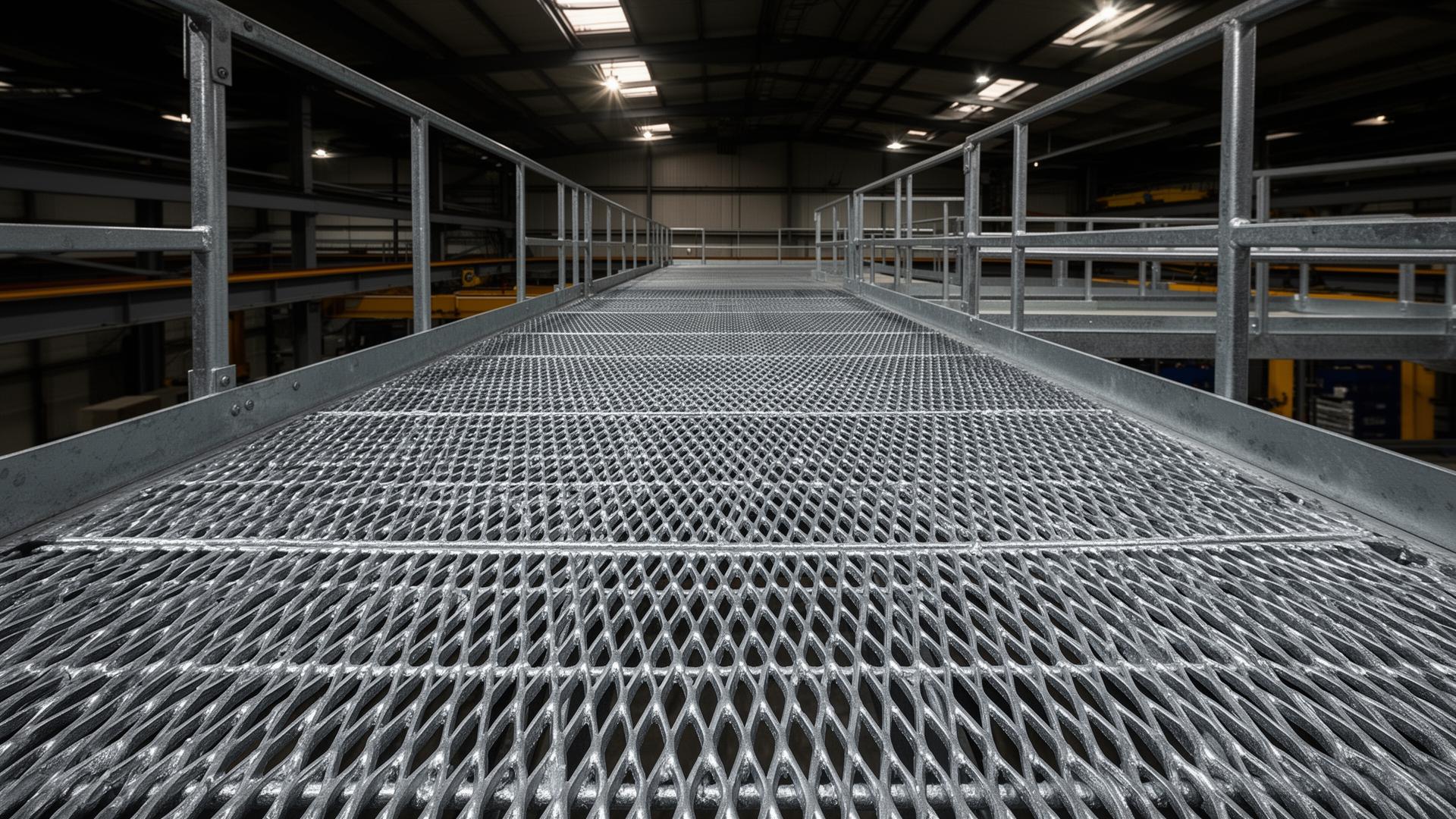

View product pageSlip-resistant expanded metal grating with raised, knife-edge teeth on every aperture — providing 360° grip in oily, wet or icy conditions. Used on stairs, ladders, walkways and machine platforms.
A
Specifications
- Thickness
- 2.0 – 4.5 mm
- Strand Width
- 3.0 – 6.0 mm
- SWD
- 20 – 40 mm
- LWD
- 50 – 100 mm
- Tread Pattern
- 5-Diamond / 4-Diamond
- Finish
- Galvanised / Stainless 304 / 316
B
Mesh pattern
C
Application references
